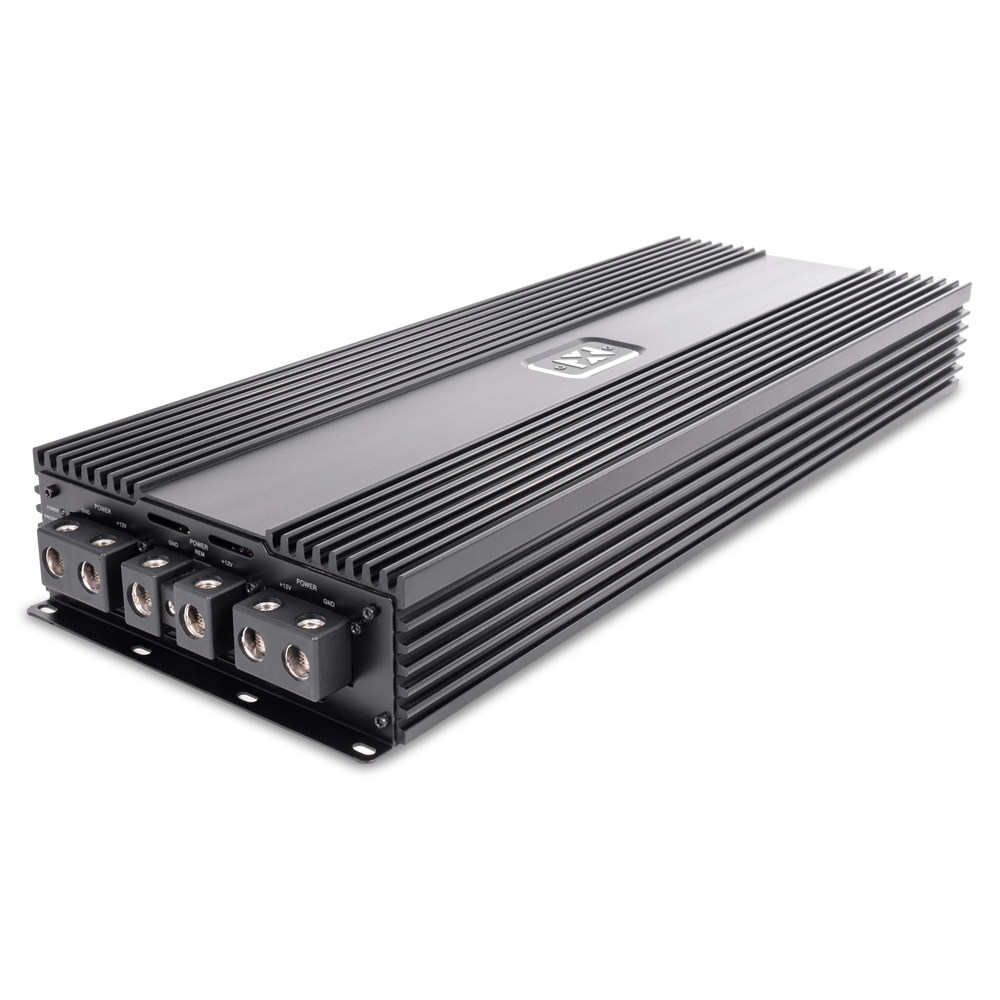

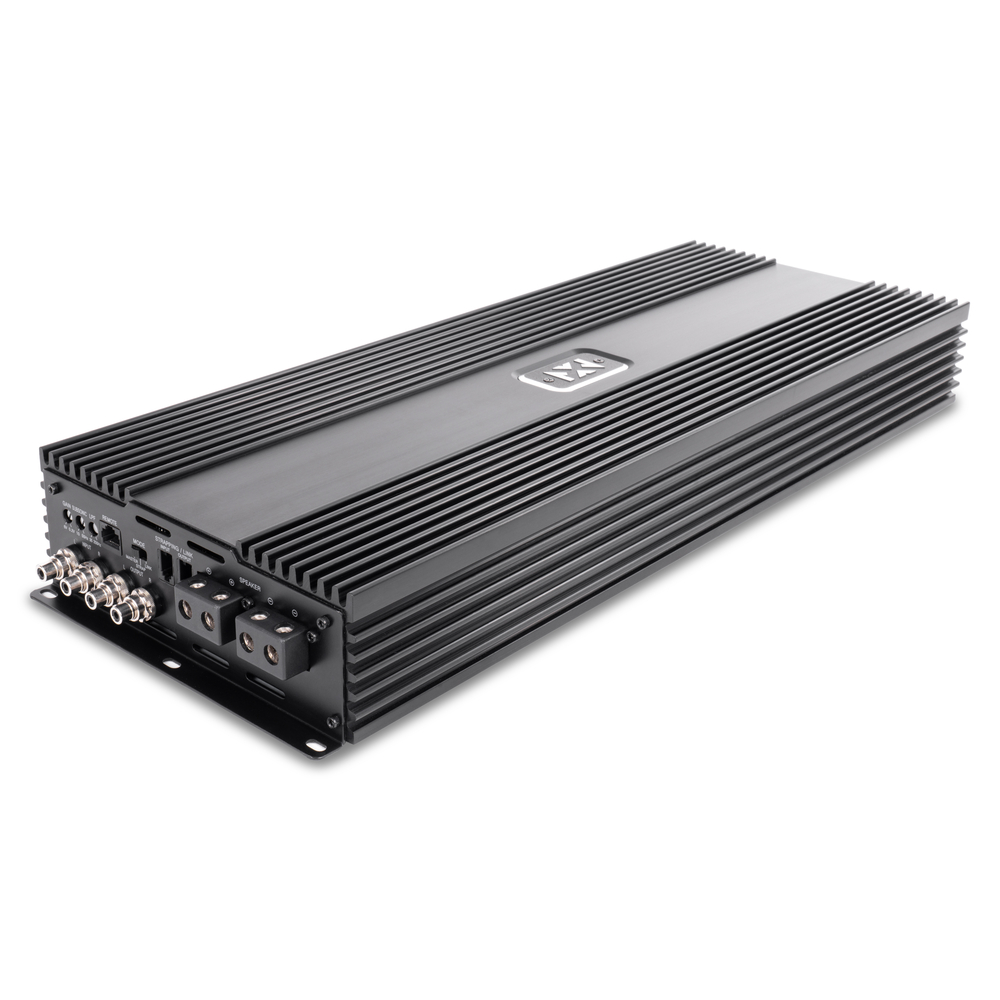

NVX XCA6K XC-Series Korean Competition Class-D Monoblock Amplifier w/ LED Remote Bass Knob 6000W RMS
Product details
| Management number | 238016944 | Release Date | 2026/07/11 | List Price | US$480.00 | Model Number | 238016944 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
NVX XCA6K – Competition-Class Monoblock Amplifier - The NVX XCA6K is a competition-class Monoblock amplifier designed for extreme power and precision. Designed in the USA and made in Korea, this amplifier delivers 6000W RMS at 1 ohm with ultra-low distortion, ensuring clean, thunderous bass. Whether you're competing or just want unmatched power in your system, this amp is built to perform.
- XC-Series Competition Class D 1 ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohm: 2000 watts x 1 channel
- 2 ohm: 4000 watts x 1 channel
- 1 ohm: 6000 watts x 1 channel
- 1 ohm: 6000 watts x 2 (Linked)
- 2 ohm: 12000 watts x 1 (Strapped)
- 35V/4700µF High-Capacity Capacitors — Deliver enhanced ripple suppression and voltage stability under extreme loads
- IRF1404 High-Efficiency MOSFETs — Used in only the most demanding amplifier designs for superior current handling and heat control
- 12 High-Current FDH45N50F Output Transistors — Distributes power more efficiently across multiple devices, reducing heat and ensuring reliable performance

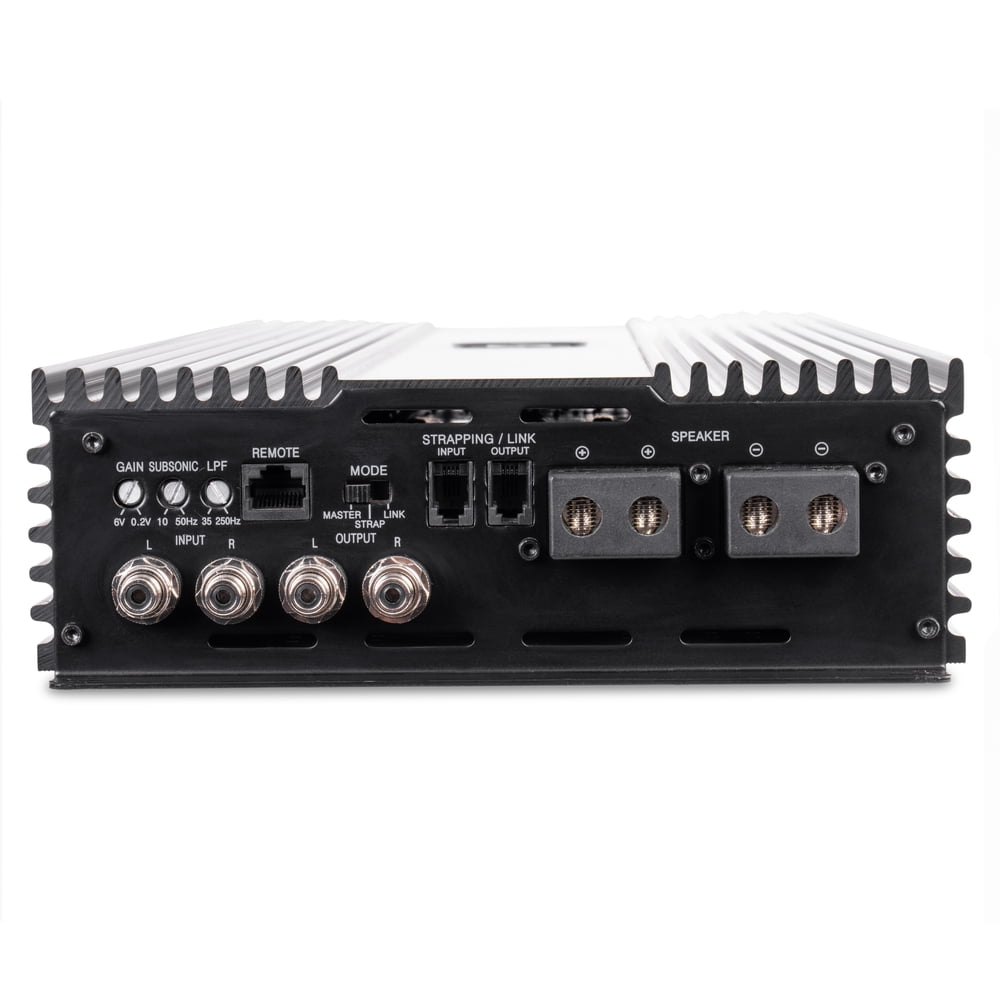

- Advanced Multi-Amp Strapping and Linking Technology
- Synchronize Two or More Amplifiers Using an RJ11 Cable (Included)
- LED Indicators: Power, Protect, and Clip Lights

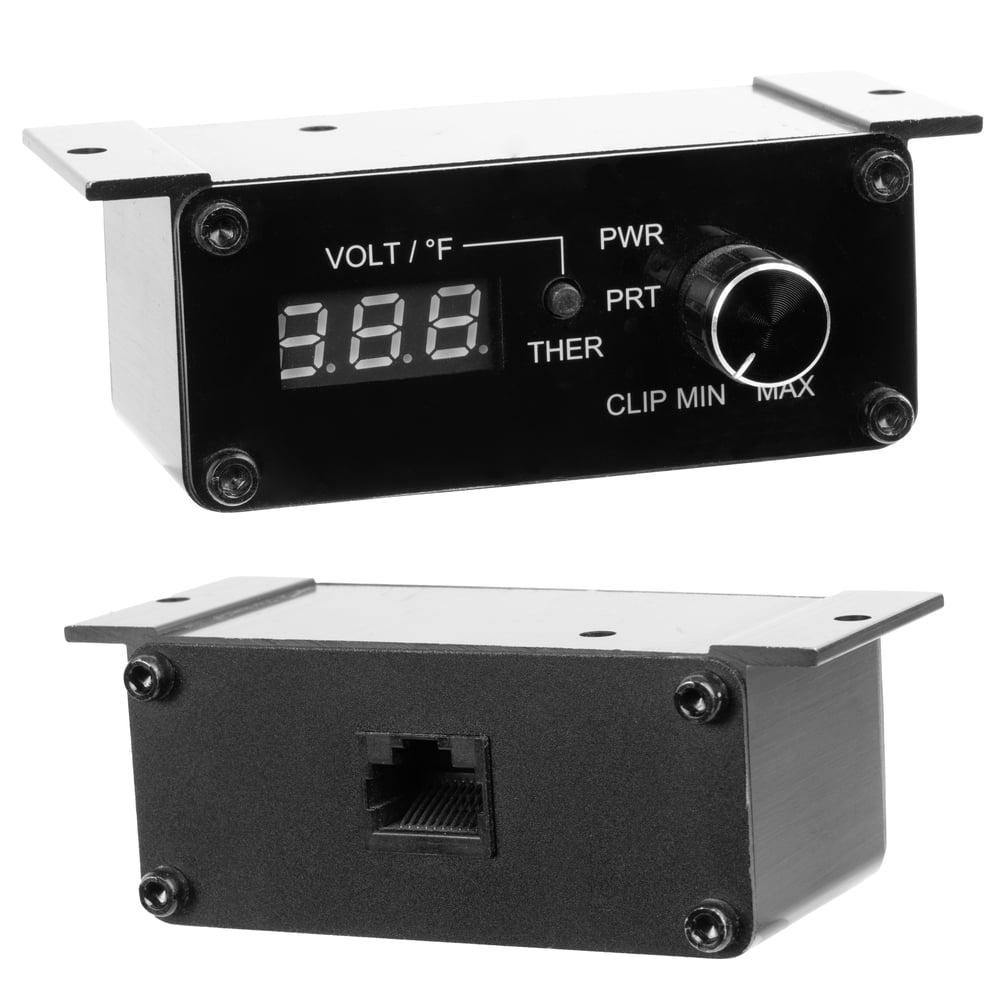

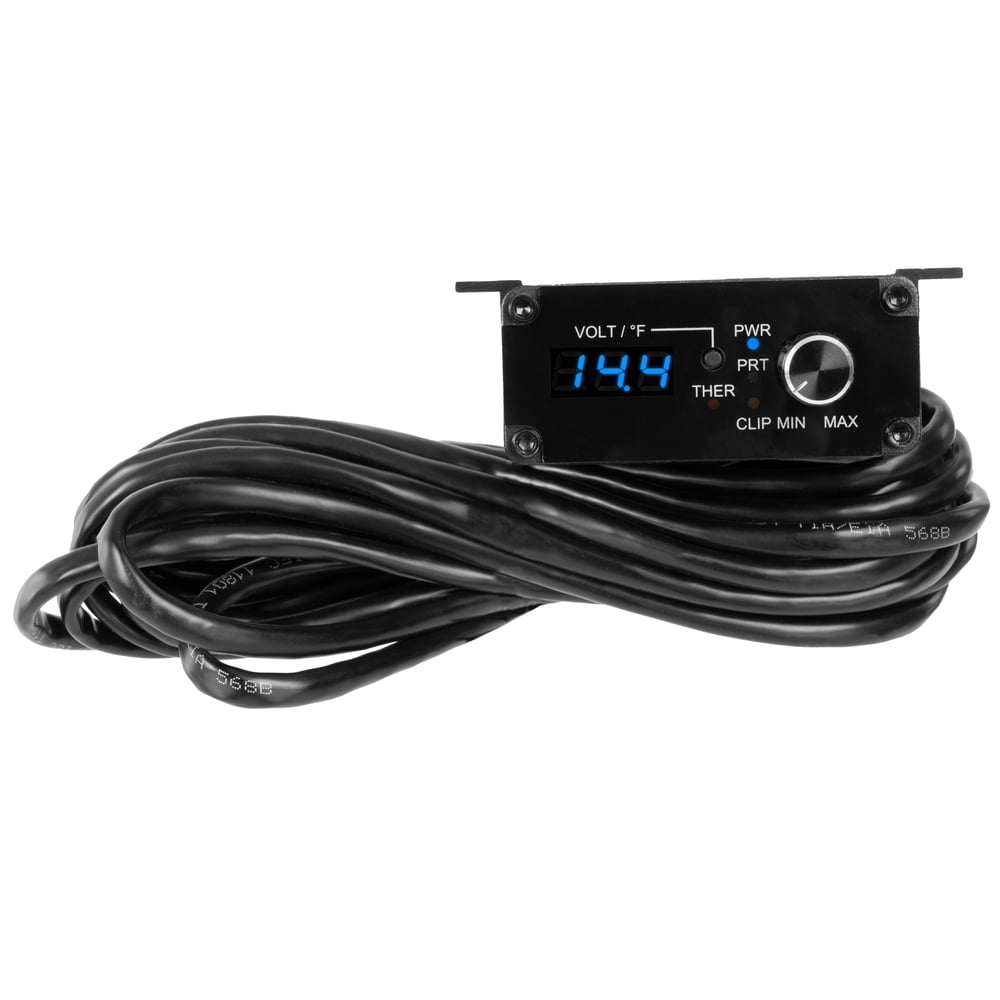

- Includes a Wired Bass Level Remote Control with Voltage and Temperature Display, Plus a Clip LED Indicator

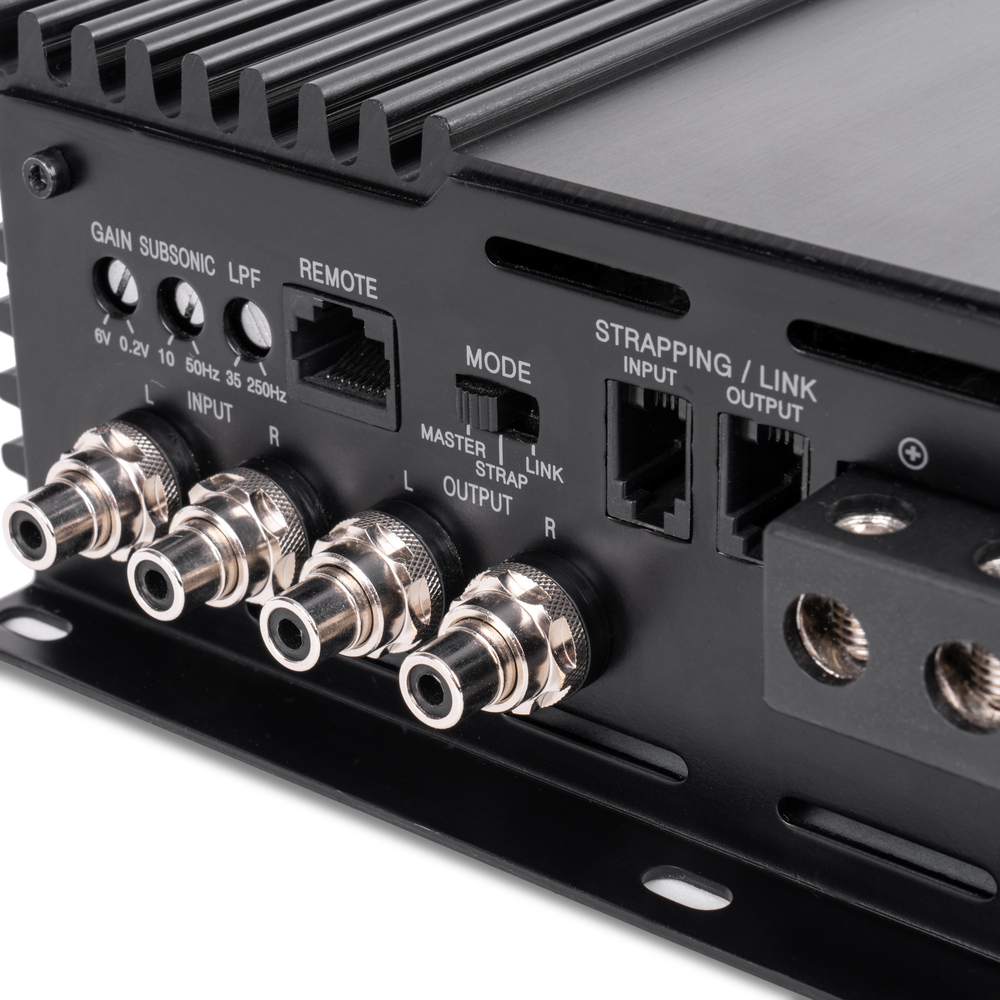

- Precision-Machined Tiffany RCA Inputs and Outputs
- 4-Way Protection Circuitry: Thermal, Overload, Speaker Short, and DC Offset Protection
- Input sensitivity: 0.2 - 6 volts
- Frequency Response: 10 - 250 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ratio: 91 dB
- Dampening Factor: >400
- Variable low-pass filter: 35 - 250 Hz, 24 dB/octave
- Subsonic filter: 10 - 50 Hz, 24 dB/octave
- Operating Voltage: 9.5V - 16V
- Fuse Rating: 600A

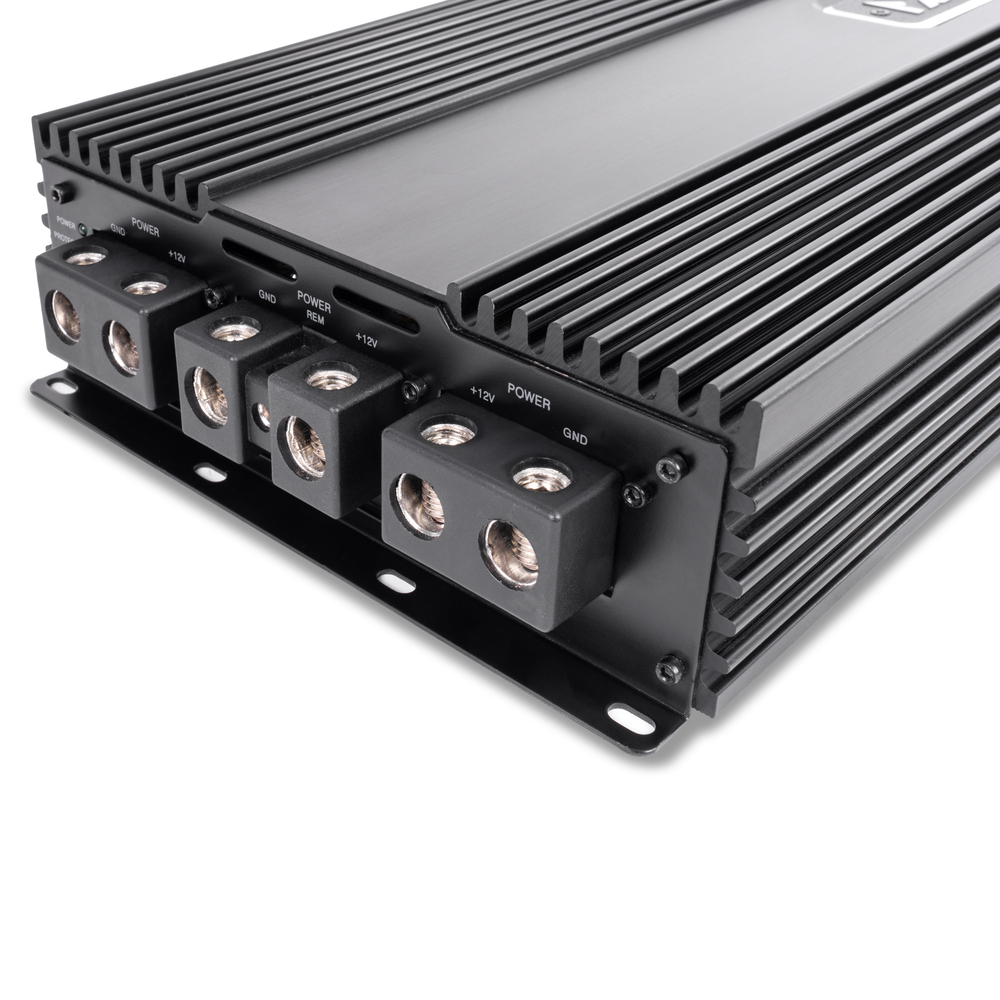

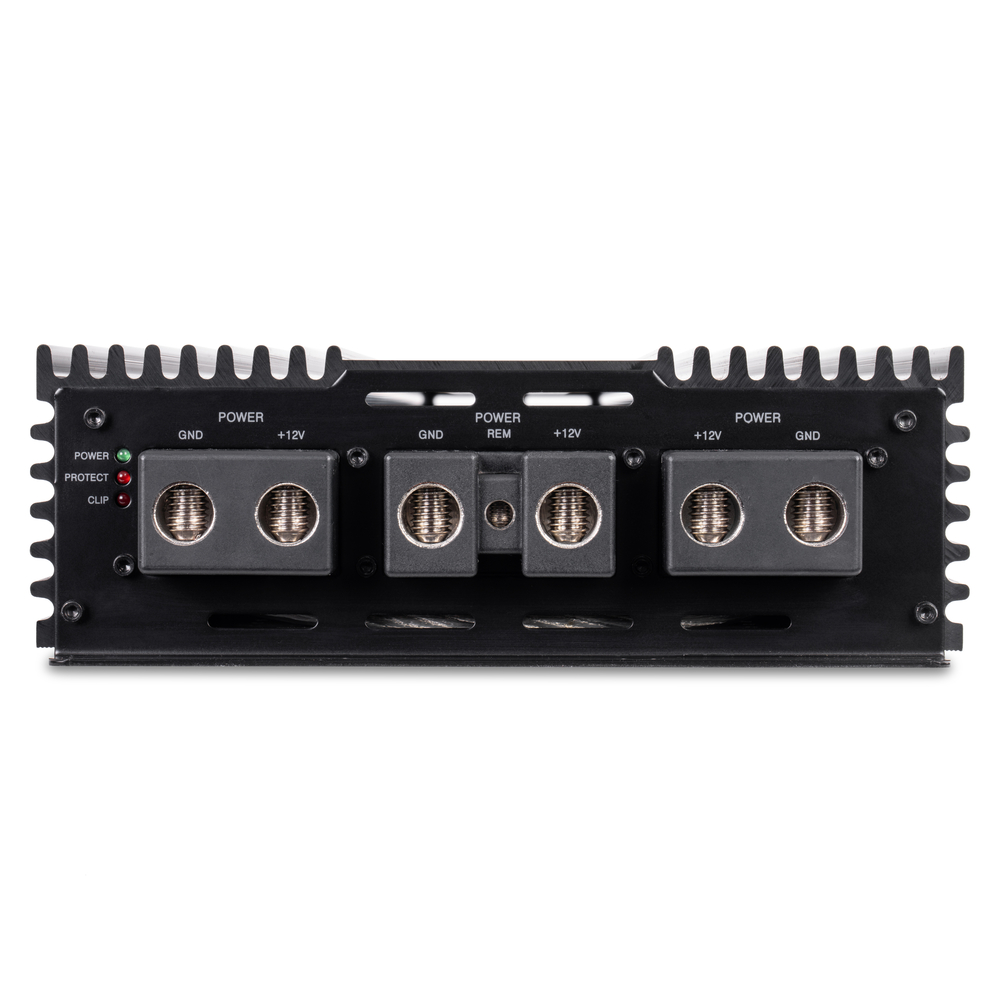

- Triple 1/0 AWG Power and Ground Inputs
- 4 AWG Speaker Outputs

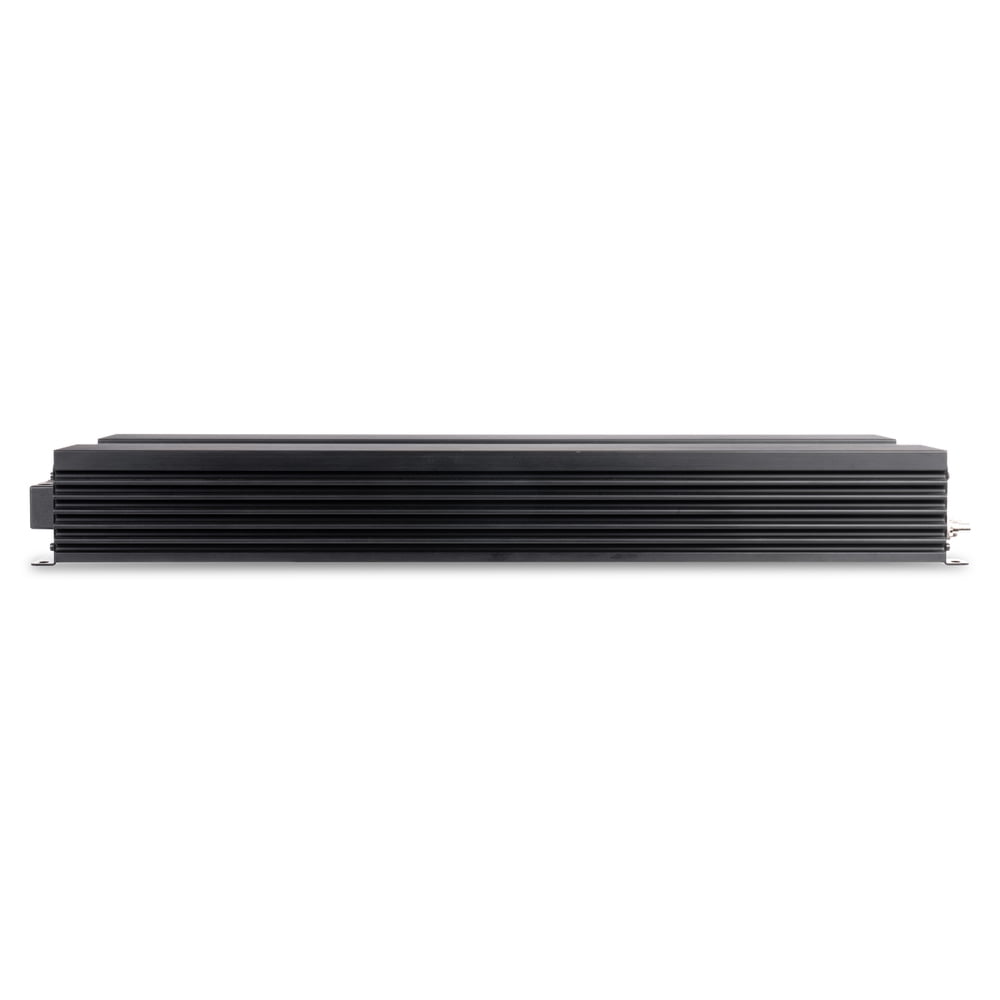

- Dimensions: 21-3/4" L x 8-3/8" W x 2-3/4" H
- Made in Korea
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- MFR #: XCA6K
| Brand | NVX |
|---|---|
| Rms power rating | 6000 W |
| Channels | 1 |
| Impedance | 1 ohm |
| Peak audio power handling | 12000 W |
| Input/output type | RCA |
| Rec. use | Car Audio |
| Rec location | Vehicle |
| Audio output | 6000 W |
| Total harmonic distortion | 0.1 % |
| Signal-to-noise ratio | 91 dB |
| Items included | Wired Bass Level Remote Control with Voltage and Temperature Display, Plus a Clip LED Indicator |
| Accessories | Wired Bass Level Remote Control with Voltage and Temperature Display, Clip LED Indicator |
| Input/output direction | Input, Output |
| Model | XCA6K |
| Vehicle fitment type | Universal |
| Has nrtl listing certification | N |
| Volts | 9.5 V, 16 V |
| Amps | 600 Amps |
